Our Technology

Technology System

Engineering-Led Innovation Across the Product Matrix

MOTET continues to refine product and engineering capability around gas storage equipment, process storage systems, and clean biomass conversion. Through long-term project delivery, the company has built a technology portfolio centered on Floor-Standing Double Membrane Gas Holders, Tank-Top Double Membrane Gas Holders, LIPP Tanks, External Steel / Internal Membrane Gas Holders, and Tar-Free Biomass Gasifiers.

MOTET MATERIAL DATA

Membrane materials & performance evidence

The inner membrane retains gas; the outer membrane provides weather protection and is held in shape by support air. These material options support project-specific selection, not a universal specification for every holder.

Options are references, not a performance ranking. Permeability values under different temperatures or test conditions are not directly comparable.

Inner membrane · gas retention

Inner membrane option A

Mass per unit area: 1200 g/m² ±5%
Tensile strength (warp / weft): ≥5800 / ≥5400 N/5 cm
Methane permeability: <500 cm³/(m²·d·bar); temperature not stated

View full data and applicability notes

Published PDF page preview

View PDF ↗Download PDF ↓

This is the corresponding page of the published Chinese / English PDF. Open the page to view and zoom the PDF.

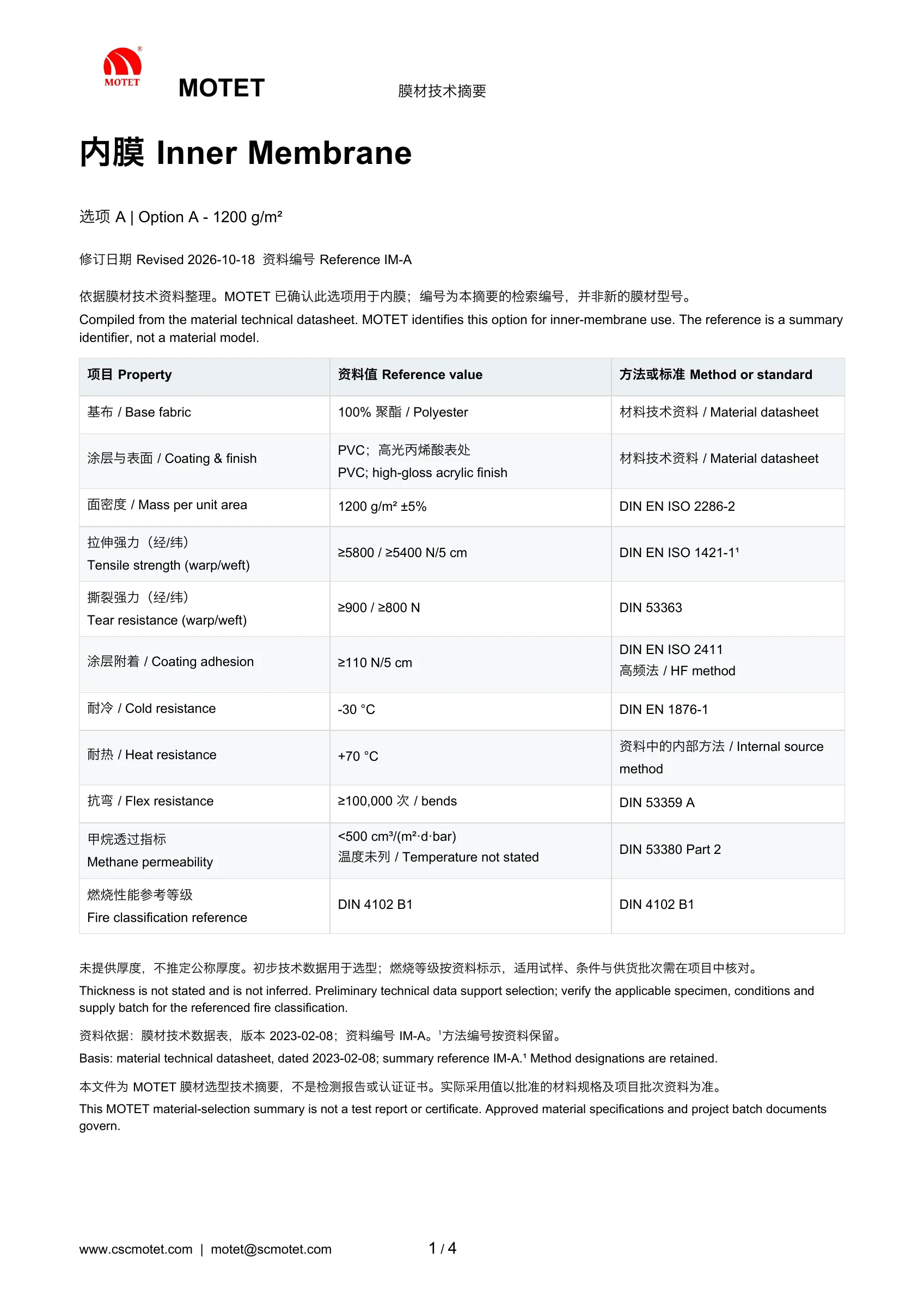

Inner membrane option A — Published PDF page preview (中文 / English)

View selectable English data and notes

On narrow screens, scroll the table horizontally to see all columns.

Inner membrane option A
Property	Source value	Method or standard in source
Base fabric	100% polyester	Supplier datasheet
Coating	PVC	Supplier datasheet
Surface finish	High-gloss acrylic finish	Supplier datasheet
Mass per unit area	1200 g/m² ±5%	DIN EN ISO 2286-2
Nominal thickness	Not stated; not inferred	Supplier datasheet
Tensile strength (warp / weft)	≥5800 / ≥5400 N/5 cm	DIN EN ISO 1421-1
Tear resistance (warp / weft)	≥900 / ≥800 N	DIN 53363
Coating adhesion	≥110 N/5 cm	DIN EN ISO 2411 · HF method
Cold resistance	-30 °C	DIN EN 1876-1
Heat resistance	+70 °C	Supplier method
Flex resistance	At least 100,000 bends	DIN 53359 A
Methane permeability	<500 cm³/(m²·d·bar); temperature not stated	DIN 53380 Part 2
Fire classification reference	DIN 4102 B1	DIN 4102 B1

The source includes minimum values and tolerances, not independent test results for every batch.
Preliminary technical data support selection. The fire classification is a datasheet reference; verify the applicable specimen, test conditions and supply batch for the project.
Method designations are retained as stated; standard editions have not been silently updated.

Source date: 2023-02-08

Inner membrane · gas retention

Inner membrane option B

Mass per unit area: 1200 g/m² (-5% / +10%)
Tensile strength (warp / weft): ≥4400 / ≥4200 N/5 cm
Methane permeability: <131 cm³/(m²·d·bar), 23 °C

View full data and applicability notes

Published PDF page preview

View PDF ↗Download PDF ↓

This is the corresponding page of the published Chinese / English PDF. Open the page to view and zoom the PDF.

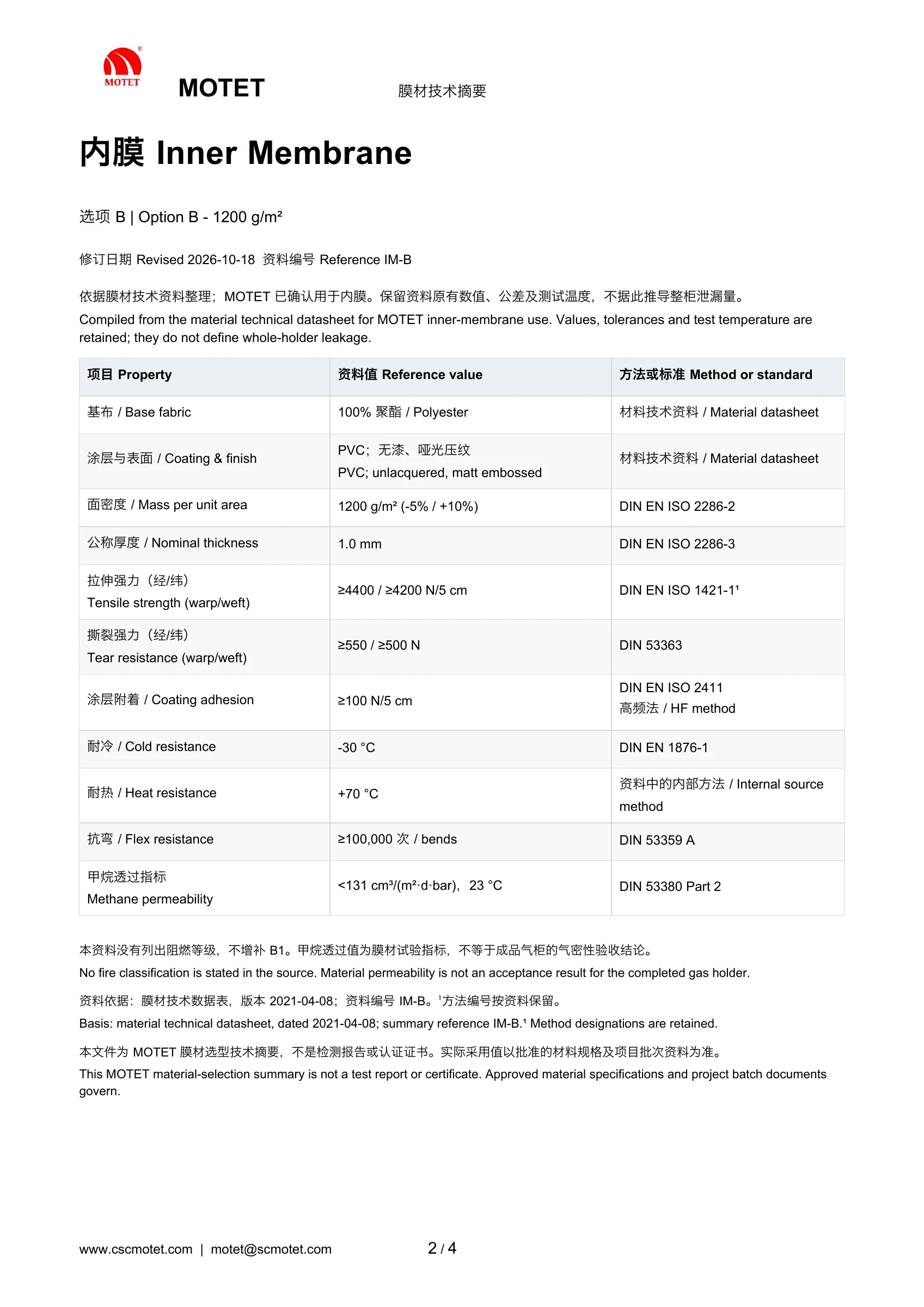

Inner membrane option B — Published PDF page preview (中文 / English)

View selectable English data and notes

On narrow screens, scroll the table horizontally to see all columns.

Inner membrane option B
Property	Source value	Method or standard in source
Base fabric	100% polyester	Supplier datasheet
Coating	PVC	Supplier datasheet
Surface finish	Unlacquered, matt embossed	Supplier datasheet
Mass per unit area	1200 g/m² (-5% / +10%)	DIN EN ISO 2286-2
Nominal thickness	1.0 mm	DIN EN ISO 2286-3
Tensile strength (warp / weft)	≥4400 / ≥4200 N/5 cm	DIN EN ISO 1421-1
Tear resistance (warp / weft)	≥550 / ≥500 N	DIN 53363
Coating adhesion	≥100 N/5 cm	DIN EN ISO 2411 · HF method
Cold resistance	-30 °C	DIN EN 1876-1
Heat resistance	+70 °C	Supplier method
Flex resistance	At least 100,000 bends	DIN 53359 A
Methane permeability	<131 cm³/(m²·d·bar), 23 °C	DIN 53380 Part 2
Fire classification reference	Fire classification not stated	Supplier datasheet

The source includes minimum values and tolerances, not independent test results for every batch.
Only this option’s source states a nominal thickness of 1.0 mm; it is not applied to other options. No B1 rating is added where the source states no fire classification.
Method designations are retained as stated; standard editions have not been silently updated.

Source date: 2021-04-08

Inner membrane · gas retention

Inner membrane option C

Mass per unit area: Approx. 1500 g/m²
Tensile strength (warp / weft): 8000 / 7500 N/5 cm
Methane permeability: ≤200 cm³/(m²·d·bar); temperature not stated

View full data and applicability notes

Published PDF page preview

View PDF ↗Download PDF ↓

This is the corresponding page of the published Chinese / English PDF. Open the page to view and zoom the PDF.

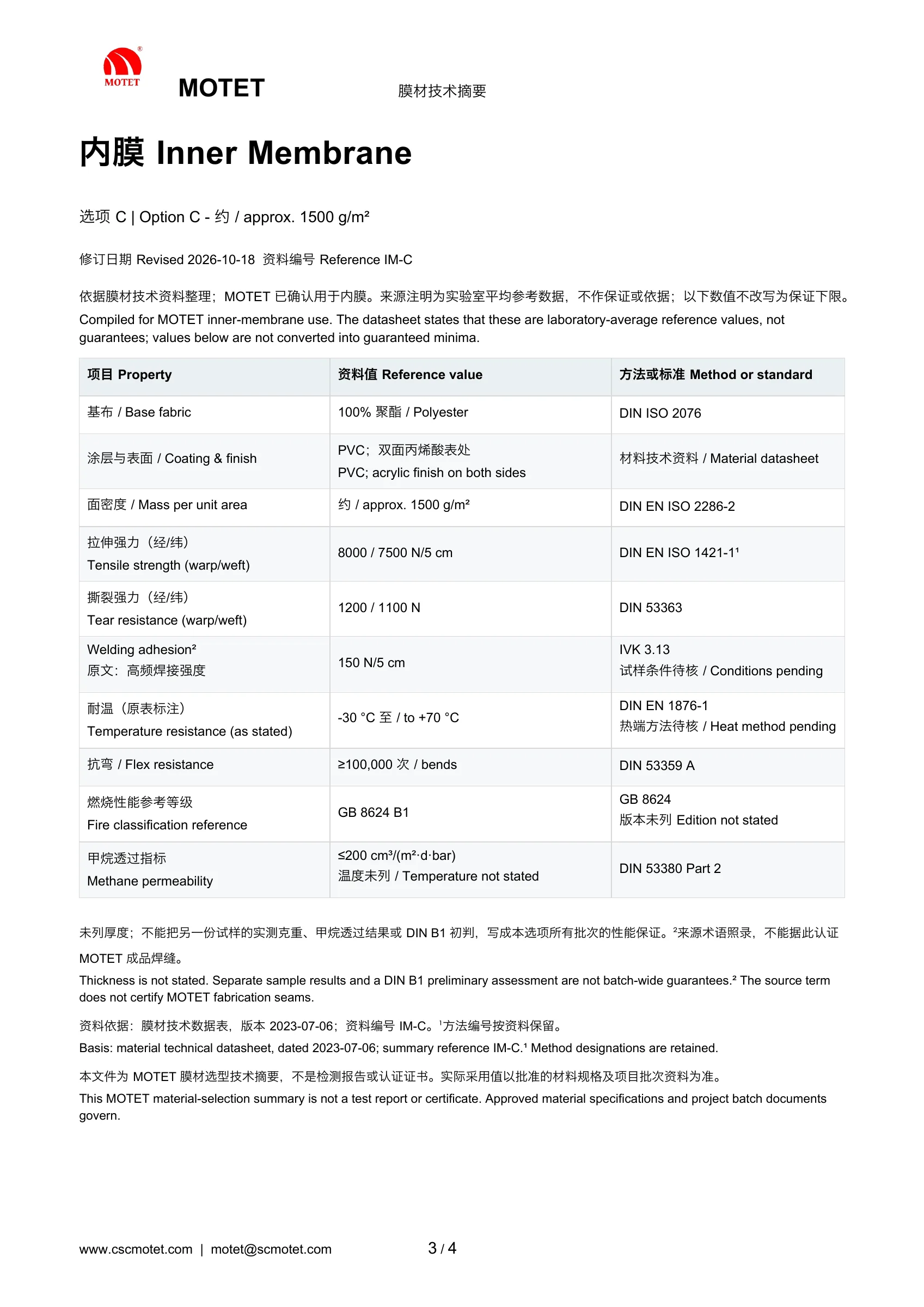

Inner membrane option C — Published PDF page preview (中文 / English)

View selectable English data and notes

On narrow screens, scroll the table horizontally to see all columns.

Inner membrane option C
Property	Source value	Method or standard in source
Base fabric	100% polyester	Supplier datasheet
Coating	PVC	Supplier datasheet
Surface finish	Acrylic finish on both sides	Supplier datasheet
Mass per unit area	Approx. 1500 g/m²	DIN EN ISO 2286-2
Nominal thickness	Not stated; not inferred	Supplier datasheet
Tensile strength (warp / weft)	8000 / 7500 N/5 cm	DIN EN ISO 1421-1
Tear resistance (warp / weft)	1200 / 1100 N	DIN 53363
Welding adhesion (source term)	150 N/5 cm	IVK 3.13
Temperature resistance (as stated)	-30 °C / +70 °C	DIN EN 1876-1; heat method requires clarification
Flex resistance	At least 100,000 bends	DIN 53359 A
Methane permeability	≤200 cm³/(m²·d·bar); temperature not stated	DIN 53380 Part 2
Fire classification reference	GB 8624 B1	GB 8624; edition not stated

The source identifies laboratory-average reference data, not guarantees; values are not converted to guaranteed minima.
“Welding adhesion” is reproduced as stated in the source. This material value does not certify MOTET fabrication seams; specimen and method conditions require verification.
GB 8624 B1 and DIN 4102-1 B1 are classifications under different standards, not interchangeable claims or Japanese non-combustible material approval.
Method designations are retained as stated; standard editions have not been silently updated.

Source date: 2023-07-06

Outer membrane · weather protection

Outer membrane option

Surface finish: Weldable PVDF front; acrylic back
Mass per unit area: 1400 g/m²
Tensile strength (warp / weft): 8000 / 7500 N/5 cm

View full data and applicability notes

Published PDF page preview

View PDF ↗Download PDF ↓

This is the corresponding page of the published Chinese / English PDF. Open the page to view and zoom the PDF.

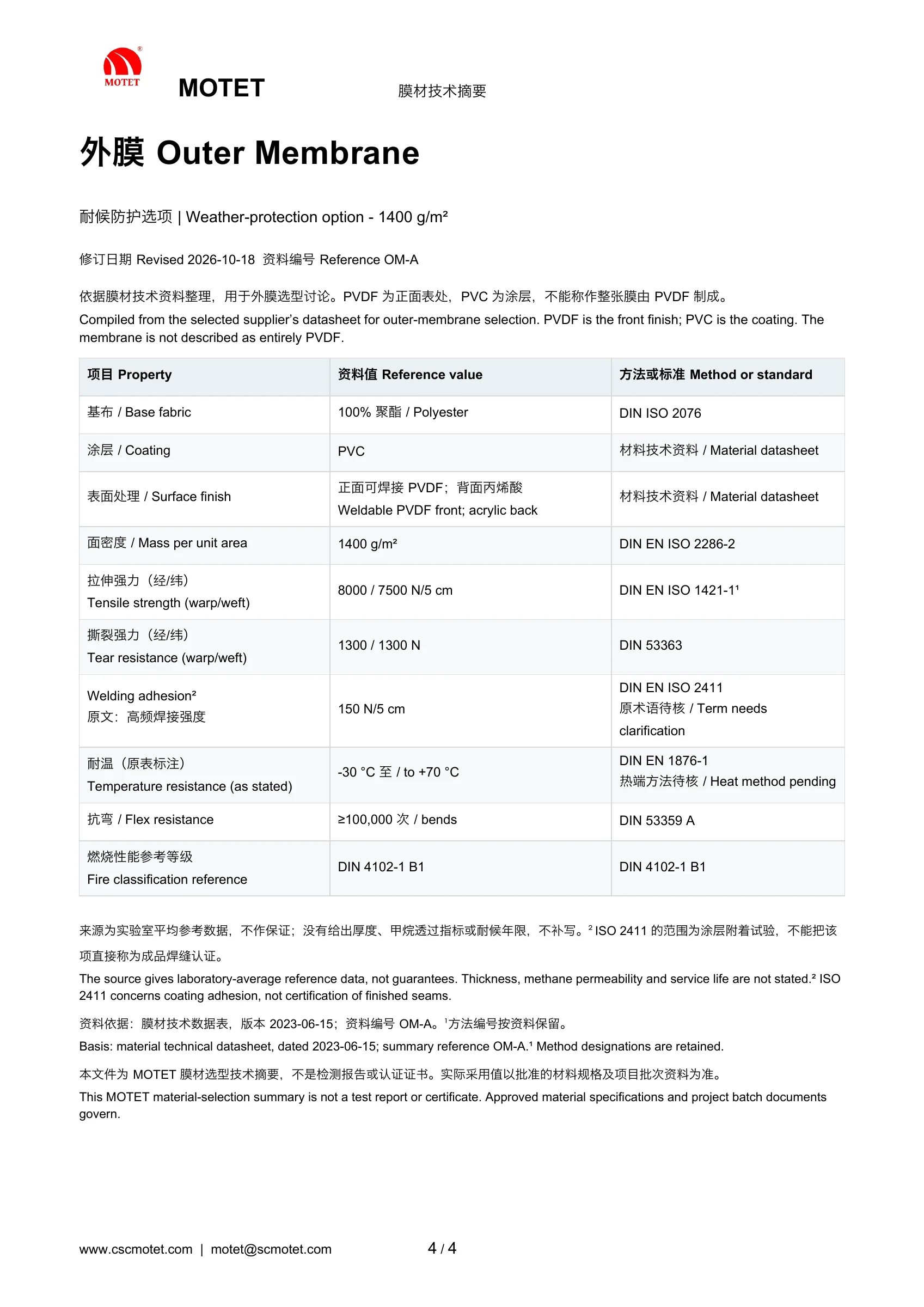

Outer membrane option — Published PDF page preview (中文 / English)

View selectable English data and notes

On narrow screens, scroll the table horizontally to see all columns.

Outer membrane option
Property	Source value	Method or standard in source
Base fabric	100% polyester	Supplier datasheet
Coating	PVC	Supplier datasheet
Surface finish	Weldable PVDF front; acrylic back	Supplier datasheet
Mass per unit area	1400 g/m²	DIN EN ISO 2286-2
Nominal thickness	Not stated; not inferred	Supplier datasheet
Tensile strength (warp / weft)	8000 / 7500 N/5 cm	DIN EN ISO 1421-1
Tear resistance (warp / weft)	1300 / 1300 N	DIN 53363
Welding adhesion (source term)	150 N/5 cm	DIN EN ISO 2411
Temperature resistance (as stated)	-30 °C / +70 °C	DIN EN 1876-1; heat method requires clarification
Flex resistance	At least 100,000 bends	DIN 53359 A
Fire classification reference	DIN 4102-1 B1	DIN 4102-1 B1

The source identifies laboratory-average reference data, not guarantees; values are not converted to guaranteed minima.
PVDF is the front finish and PVC the coating, not an entirely PVDF membrane. Thickness, methane permeability and service life are not inferred. The fire classification supports selection; verify the applicable specimen and batch documents for the project.
“Welding adhesion” is reproduced as stated in the source. This material value does not certify MOTET fabrication seams; specimen and method conditions require verification.
ISO 2411 concerns coating adhesion. The source uses “Welding adhesion”; the original term is retained with a clarification note.
Method designations are retained as stated; standard editions have not been silently updated.

Source date: 2023-06-15

Compiled from membrane technical data for project-specific material selection.

These are material data, not MOTET test reports, whole-holder certification or contractual guarantees. Material permeability is not whole-holder leakage. Selection also requires gas composition, temperature, loads, interfaces and fabrication conditions; approved project and batch documents govern.

Download Chinese / English summary ↓Discuss materials for your operating conditions →2026-10-18

R&D Team

Engineering Teams Behind the Technology

These engineering visualizations illustrate collaboration from field checks and design review to commissioning; they do not depict specific employees, clients or projects.

Field Engineering Coordination

Field checks align the membrane, perimeter anchoring and equipment interfaces before design confirmation and delivery.

Engineering Design Review

Drawings, membrane samples and equipment interfaces are reviewed together to keep design, manufacturing and installation aligned.

Commissioning and Verification

On-site checks cover the control cabinet, support-air equipment and connections before controlled commissioning verifies system response.

R&D Milestones

Technology Development Journey

This timeline presents how technology and business capability evolved over time, supported by restrained motion to reinforce sequence.

2004

The MOTET Brand Begins

The MOTET brand dates back to 2004. We operate as Motet Gasification (Sichuan) Energy Development Co., Ltd., with MOTET’s original core team responsible for equipment engineering, manufacturing and project services.

Growth Phase

Product System Refinement

Manufacturing and project experience continued to accumulate around Floor-Standing Double Membrane Gas Holders, Tank-Top Double Membrane Gas Holders, External Steel / Internal Membrane Gas Holders, LIPP Tanks, and Tar-Free Biomass Gasifiers, strengthening product standardization.

Domestic Expansion

Nationwide Project Coverage

Projects expanded across livestock waste treatment, kitchen waste processing, wastewater treatment, biomass energy and fire-water storage, building a stable nationwide case base.

Global Expansion

Entering International Markets

Business expanded into overseas markets across Southeast Asia, Latin America, Oceania and Africa, validating the engineering adaptability of the product line in varied conditions.

Today

Upgrading to Integrated Energy Solutions

Building on equipment manufacturing, the company is extending into green methanol, SAF, biomass heating and hydrogen-coupled solutions to evolve from equipment supplier to integrated energy solution provider.
