Rectangular membrane covers: perimeter and layout

Explore white membrane covers on rectangular structures, focusing on side and end profiles, perimeter piping and maintenance access.

These photographs are grouped by equipment and manufacturing topic, not presented as a separately verified project with an identified location, client or capacity.

Share the gas or stored material, required capacity and installation conditions to discuss a suitable configuration.

Membrane covers on rectangular structures

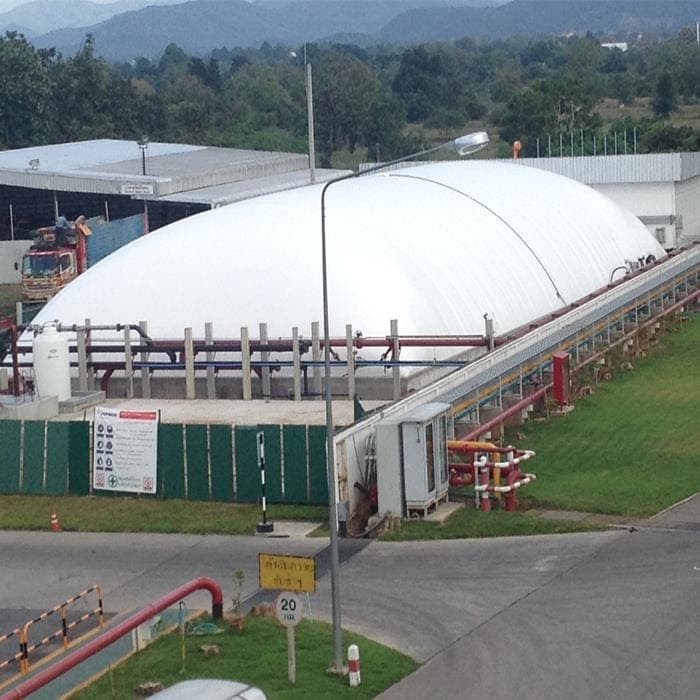

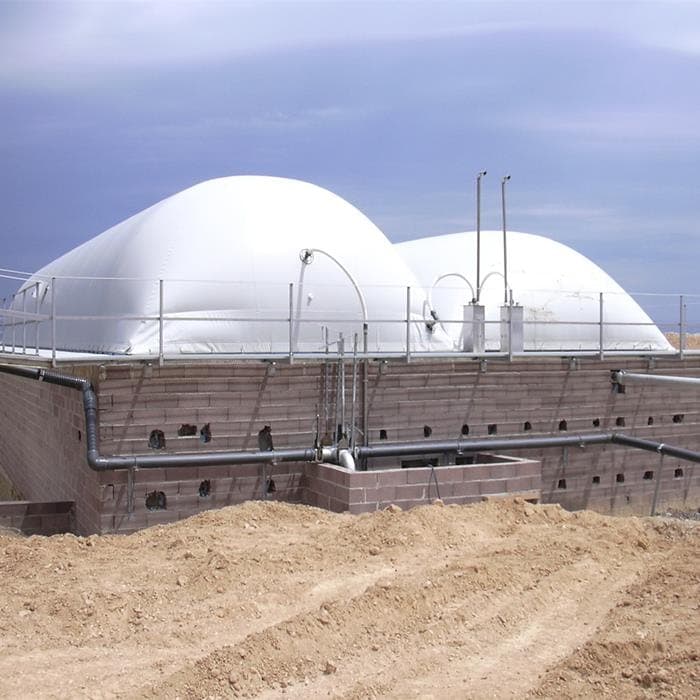

A rectangular membrane cover must follow the structure’s length and width while addressing connections along the sides, ends and corners. These photographs show its relationship to civil structures, piping and access routes, providing a visual reference for discussing the proposed layout.

The function of a membrane cover depends on the process and system design. A double-membrane storage arrangement requires a defined gas-tight inner membrane, outer enclosure and support-air system. External photographs alone cannot establish the internal construction.

Perimeter connections and site coordination

Use measured dimensions and structural drawings to review perimeter supports, fixings and seals, membrane joints and penetrations. Side and corner details must align with structural calculations and the installation plan; plan dimensions alone are insufficient to define the equipment.

The proposal should coordinate gas piping, drainage, maintenance routes and use of existing facilities. Structure plans and sections, site photographs and process requirements support a review of the cover form, equipment connections and installation arrangements.
