LIPP silos: storage layouts, conveying and discharge

Explore cylindrical steel silo groups, roof-level conveying structures and lower discharge access as a reference for storage layouts and material-handling interfaces.

These photographs are grouped by equipment and manufacturing topic, not presented as a separately verified project with an identified location, client or capacity.

Share the gas or stored material, required capacity and installation conditions to discuss a suitable configuration.

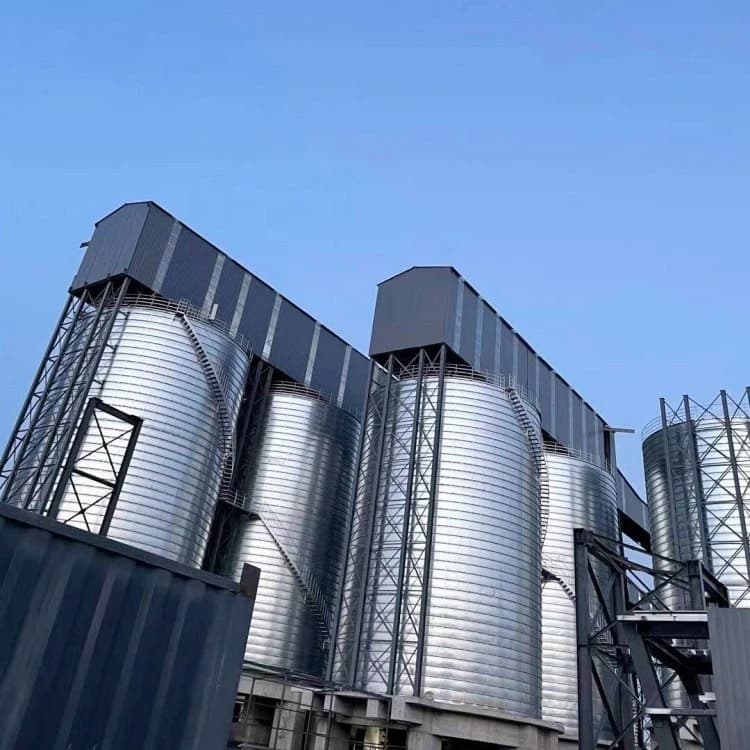

Silo structure and grouped layouts

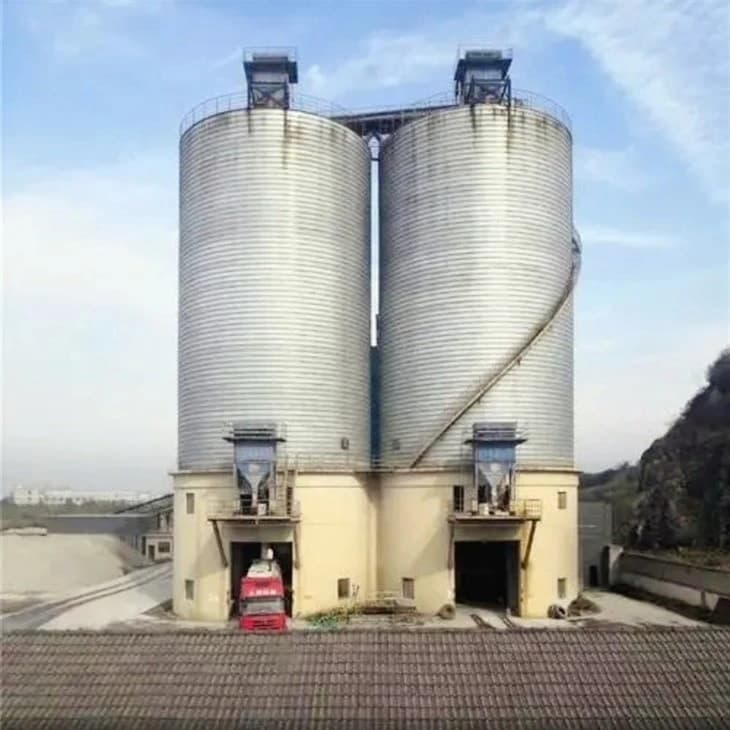

A LIPP silo uses formed steel strip and spiral folded seams to create a cylindrical wall. Top filling, lower discharge and surrounding access influence the grouped layout. These different equipment examples help discuss the relationship between vessels, conveying equipment, supports and maintenance facilities.

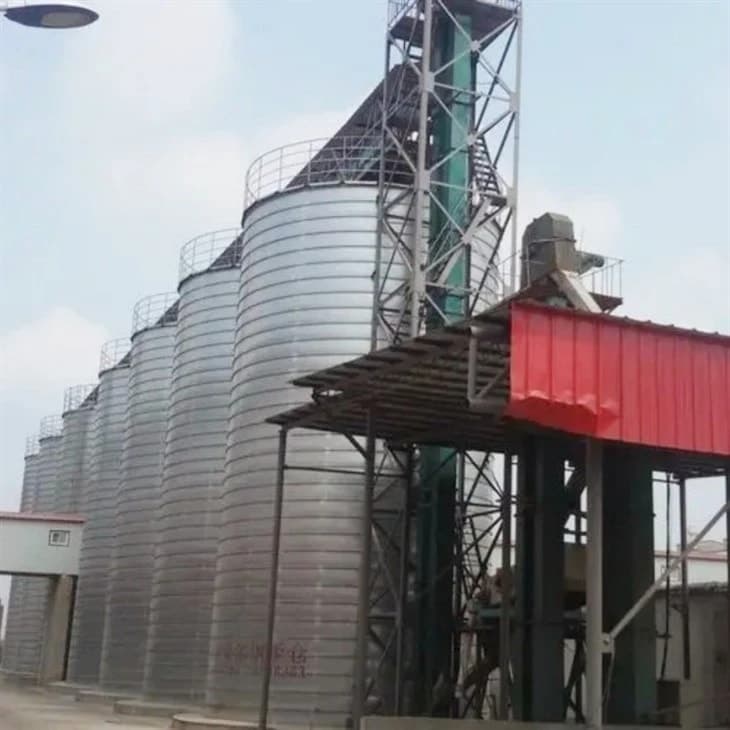

Silo structures and interfaces must suit the actual material and operating method. The cylinder profiles, conveying frames and vehicle routes illustrate layout choices; the contents, usable capacity, base arrangement and discharge equipment must be established through process and structural documentation.

Material properties and design review

Define bulk density, particle size, moisture content and flow properties, then review wall loads, base geometry and outlet design against the storage period and filling and discharge methods. Capacity and dimensions must reflect the material data, including potential bridging, stagnant regions and cleaning requirements.

Coordinate conveying equipment, dust collection, level monitoring, maintenance routes and vehicle working space. Where combustible dust is involved, assess dust controls and explosion-protection measures against the material and process conditions, and document the design requirements, equipment interfaces and inspection scope.
